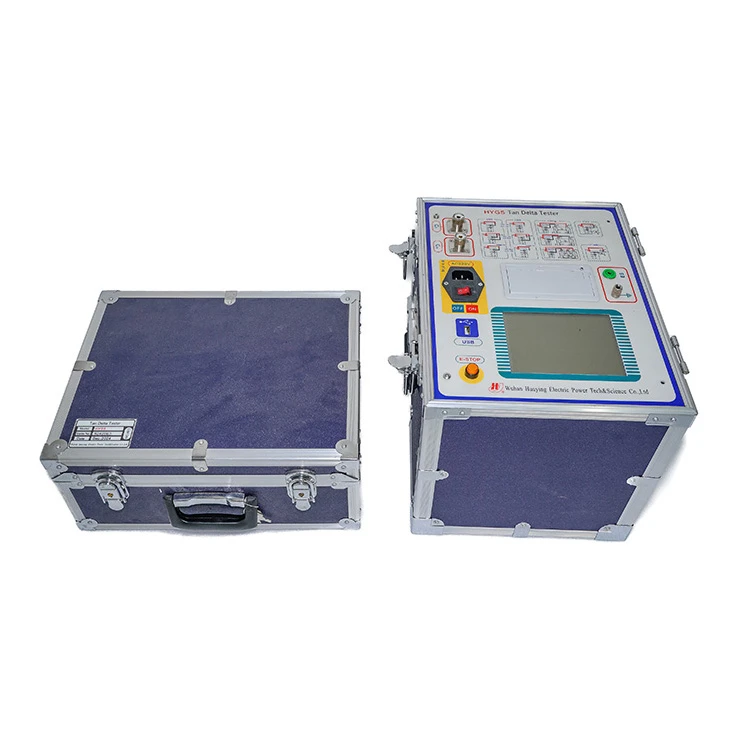

Tan Delta Tester rau HV Bushings 10kV
Tan Delta Tester HYGS yog qhov siab- ntsuas qhov ntsuas qhov tseeb rau kev sim dielectric poob tangent (tgδ) thiab muaj peev xwm ntawm ntau yam khoom siv hluav taws xob siab -voltage fais fab nroj tsuag, substations thiab lwm qhov chaw lossis chaw soj nstuam. Cov cuab yeej yog ib qho kev sib koom ua ke nrog tsim-hauv dielectric poob xeem choj, qhov sib txawv zaus voltage tswj fais fab mov, kauj ruam- nce transformer thiab SF6 siab stability standard capacitor. Qhov ntsuas hluav taws xob siab tshaj plaws yog tsim los ntawm inverter hauv qhov ntsuas, thiab yog siv rau kev ntsuas ntawm cov khoom kuaj tom qab tau txhawb los ntawm lub tshuab hloov pauv. Cov zaus tuaj yeem hloov mus rau 45.0Hz, 50.0Hz, 55.0Hz, 47.5Hz\\52.5Hz, 45.0Hz\\55.0Hz, 60.0Hz, 65.0Hz, 57.5Hz\\62.5Hz, 55.0Hz\\65.0Hz.
Hauj lwm lawm
Tan Delta Tester HYGS yog qhov siab- ntsuas qhov ntsuas qhov tseeb rau kev sim dielectric poob tangent (tgδ) thiab muaj peev xwm ntawm ntau yam khoom siv hluav taws xob siab -voltage fais fab nroj tsuag, substations thiab lwm qhov chaw lossis chaw soj nstuam. Cov cuab yeej yog ib qho kev sib koom ua ke nrog tsim-hauv dielectric poob xeem choj, qhov sib txawv zaus voltage tswj fais fab mov, kauj ruam- nce transformer thiab SF6 siab stability standard capacitor. Qhov ntsuas hluav taws xob siab tshaj plaws yog tsim los ntawm inverter hauv qhov ntsuas, thiab yog siv rau kev ntsuas ntawm cov khoom kuaj tom qab tau txhawb los ntawm lub tshuab hloov pauv. Cov zaus tuaj yeem hloov mus rau 45.0Hz, 50.0Hz, 55.0Hz, 47.5Hz\\52.5Hz, 45.0Hz\\55.0Hz, 60.0Hz, 65.0Hz, 57.5Hz\\62.5Hz, 55.0Hz\\65.0Hz. Cov thev naus laus zis thev naus laus zis tau txais los ua kom tsis txhob cuam tshuam ntawm lub zog hluav taws xob zaus hluav taws xob ntawm qhov kev sim. Nyob rau tib lub sijhawm, nws yog qhov tsim nyog rau lub sijhawm ntawm kev kuaj xyuas lub zog nrog lub tshuab hluav taws xob tom qab tag nrho cov hluav taws xob tawm.
Nta
Loj LCD zaub
Kev ua haujlwm yooj yim, qhov ntsuas tau nruab nrog siab -kawg kov LCD npo, super kov interface, txhua tus txheej txheem yog qhov tseeb heev, tus neeg teb xov tooj tsis xav tau kev cob qhia ntxiv tuaj yeem siv. Nyem rau nws kom ua tiav tag nrho cov txheej txheem ntawm kev ntsuas, yog qhov zoo tshaj plaws ntse dielectric poob ntsuas cov cuab yeej.
Cov ntaub ntawv khaws cia loj
Cov cuab yeej tau nruab nrog daim ntawv qhia hnub nti thiab lub cim xeeb loj - muaj peev xwm, uas tuaj yeem txuag tau 100 pawg ntawm cov ntaub ntawv, txuag cov txiaj ntsig kev ntsuas raws sijhawm, saib cov ntaub ntawv keeb kwm txhua lub sijhawm, thiab luam tawm.
Kev tshawb fawb thiab kev tswj cov ntaub ntawv qib siab
Cov cuab yeej cov ntaub ntawv tuaj yeem raug xa tawm los ntawm USB flash drive, thiab cov ntaub ntawv tuaj yeem saib thiab tswj ntawm txhua lub PC.
Ntau hom kev sim
Lub ntsuas hluav taws xob tuaj yeem kuaj tau los ntawm kev siv hluav taws xob sab hauv, hluav taws xob sab nraud, tus qauv sab hauv, tus qauv sab nraud, txoj kev sib txuas ncaj qha, rov qab txoj kev sib txuas, tus kheej - txoj kev zoo siab thiab lwm yam. Nyob rau hauv cov ntaub ntawv ntawm lwm tus qauv sab nraud high voltage zoo kev twb kev txuas txoj kev, high voltage (ntau tshaj 10kV) dielectric poob yuav ua tau.
Ntsuas CVT yam tsis tau disassembled high voltage lead
Cov cuab yeej ntsuas tau raug ntsuas qhov dielectric poob thiab capacitance ntawm CVT yam tsis muaj kev cuam tshuam cov hluav taws xob siab ntawm CVT.
Kev ntsuas ntawm C0 los ntawm CVT Rov Qab Shielding Method
Lub ntsuas hluav taws xob tuaj yeem ntsuas qhov dielectric poob thiab capacitance ntawm C0 ntawm qhov kawg ntawm CVT los ntawm txoj kev thim rov qab.
High -Speed sampling teeb liab
Lub inverter thiab sampling Circuit Court nyob rau hauv lub ntsuas yog tag nrho cov digitally tswj, thiab cov zis voltage yog tsis tu ncua adjustable.
Kev tiv thaiv ntau yam muaj kev nyab xeeb thiab txhim khu kev qha
Cov cuab yeej muaj ntau yam kev tiv thaiv xws li input voltage fluctuation, high voltage tam sim no, tso zis luv luv Circuit Court, fais fab tsis ua hauj lwm, overvoltage, overcurrent thiab kub, uas ua kom muaj kev ruaj ntseg thiab kev ntseeg siab ntawm lub ntsuas. Cov cuab yeej tseem muaj lub luag haujlwm ntawm kev teeb tsa hauv av kom paub tseeb tias cov khoom siv tsis muaj av tsis raug tso cai ua haujlwm thiab pib qhov kev xeem. Lub 380V fais fab mov txuas nrog kev ua yuam kev ntawm qhov chaw, uas muaj lub tswb muaj nuj nqi thiab tuaj yeem tiv thaiv cov cuab yeej los ntawm kev puas tsuaj.
CVT xeem hauv ib kauj ruam
Cov cuab yeej kuj tseem tuaj yeem kuaj qhov dielectric poob thiab lub peev xwm ntawm tag nrho ntim CVT (Capacitive Voltage Transformer) C1 thiab C2, thiab paub qhov kev sim ib txhij ntawm C1 thiab C2. Lub ntsuas kuj tseem tuaj yeem kuaj CVT piv thiab qhov sib txawv ntawm qhov voltage.
LCR tsis siv neeg ntsuas
Tag nrho tsis siv neeg inductance, capacitance thiab kuj ntsuas, lub kaum sab xis zaub.
Technical Specification
|
1 |
Siv tej yam kev mob |
-10℃∽40 degree |
RH ~ 80% |
||||
|
2 |
Anti- cuam tshuam |
Kev hloov pauv zaus |
|||||
|
3 |
Hwj chim |
AC 220V ± 10% Tawm tswv yim |
Tso cai tshuab hluav taws xob |
||||
|
4 |
Cov zis siab |
0.5KV txog 10KV |
0.1kV ib |
||||
|
Precision |
± (Nyeem * 2.0% +0.1kV) |
||||||
|
Qhov siab tshaj plaws tam sim no |
200 mA |
||||||
|
Muaj peev xwm |
2000 VA |
||||||
|
5 |
Tus kheej -lub zog zoo siab |
AC: 0V ∽50V / 15A |
50.0HZ, 60.0HZ Ib zaus 45HZ / 55HZ 47.5HZ / 52.5HZ 55HZ / 65HZ 57.5HZ / 62.5HZ Tsis siv neeg ob zaus |
||||
|
6 |
Kev daws lub zog |
tus nqi: 0.001% |
Cx: 0,001 pf |
||||
|
7 |
Precision |
△tgδ:±(Nyeem * 1.0%+0.040%) |
|||||
|
△C x : ± (Nyeem * 1.0%+1.00PF) |
|||||||
|
8 |
ntsuas qhov ntau |
tg tug |
Unlimited |
||||
|
C x |
15pF ＜ Cx ＜ 300nF |
||||||
|
10 KV |
Cx 60 nF |
||||||
|
5 kvu |
Cx 150 nF |
||||||
|
1 KV |
Cx 300 nF |
||||||
|
CVT test |
Cx 300 nF |
||||||
|
9 |
LCR ntau yam |
L>20H (2kV) |
R>10KΩ (2kV) |
||||
|
Qhov tseeb: 2% |
Kev daws teeb meem: 0.01 |
||||||
|
10 |
CVT ntau |
Qhov sib txawv ntawm qhov sib txawv: 10∽10000 |
|||||
|
Qhov tseeb: 3% |
Kev daws teeb meem: 0.01 |
||||||
|
11 |
Sab nrauv dimension |
350 (L) × 270 (W) × 320 (H) (tus tswv) |
|||||
|
350 (L) × 270 (W) × 160 (H) (khoom siv lub thawv) |
|||||||
|
12 |
Memory loj |
Pab pawg 100 txhawb U disk cov ntaub ntawv khaws cia |
|||||
|
13 |
Qhov hnyav (tus tswv): 22.75Kg |
Qhov hnyav (khoom siv lub thawv): 5.25Kg |
|||||
